Single Drum Colloidal Grout Mixer — SD4 / SD6

Applications

This machine is a single drum, high speed, high shear unit designed for the efficient production of cement based grouts.

The finished product exhibits colloidal properties and is nearly immiscible in water.

ConMICO's mixer can handle cement/sand ratios up to 1:3 by weight and produce pumpable mixtures. It will mix a wide range of materials such as Cement / P.F.A. Preblends, Bentonite, Lime or Chemicals.

Features

The mixer illustrated is a skid mounted unit for tunnel or mining applications. The unit can be supplied on a site mobile chassis if required.

SD4 and SD6 mixers are designed and constructed to withstand any arduous site condition.

Technical Specifications

Dimensions Length: 1.3 m
  Width: 0.85 m
  Height: 1.25 m
Power Unit 20 HP Air Motor
  11 KW Electric Motor
  25 HP Diesel Motor
Output 2.5 cu.m / hour
  Pressure 2.0 bar
Batch Capacity Mixing tank capacity is 120 / 150 litres

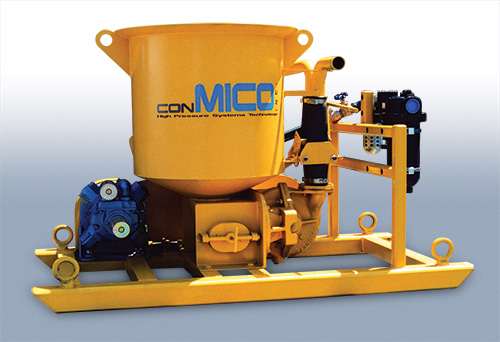

Model SD-6 Colloidal Grout Mixer

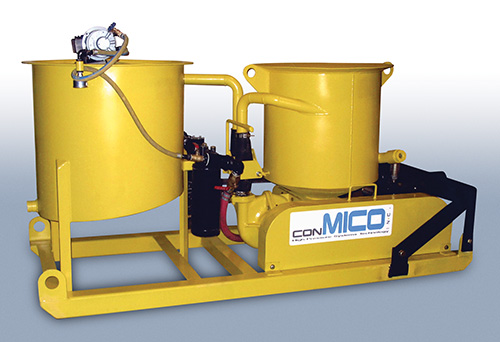

Colloidal Grout Mixer with AM Agitator
